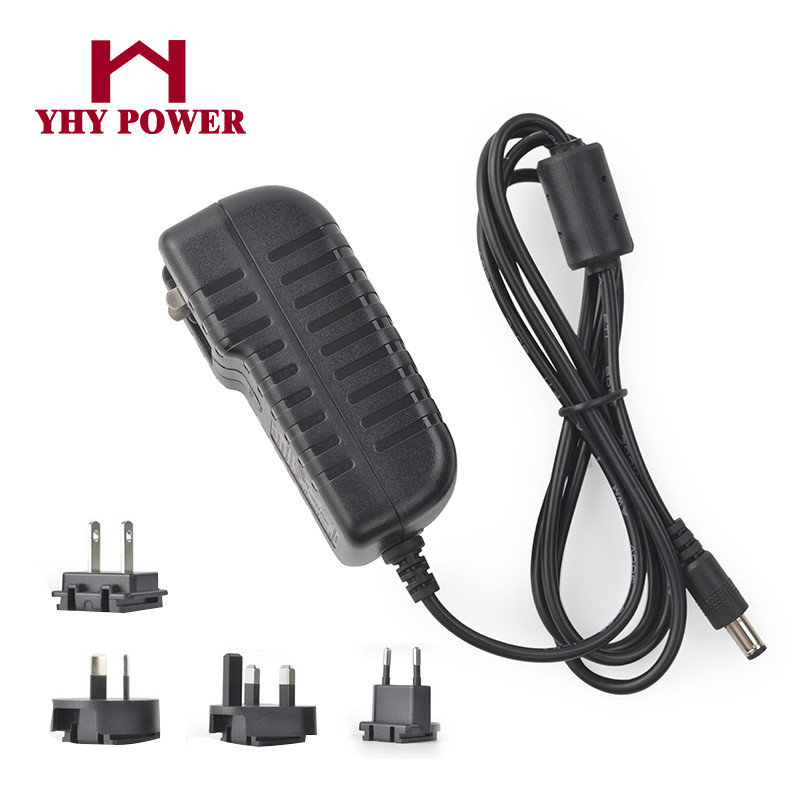

14v 1.07a Interchangeable Plug Adapter With Protection Functions

Place of Origin : Guangdong, China (Mainland)

Brand Name : YHY

Model Number : YHY-140YYYYY

Supply Ability : 450,000 PCS/month

Packaging Details : Brown box+ carton

MOQ : 100

Price : Negotiable

Certification : UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65

Payment Terms : T/T, Western Union,Paypal

Delivery Time : 12-14 workdays after receipt of your oder

Output Type : DC

Connection : Plug In

Product Name : 14v 1.07a interchangeable plug adapter

Input : AC 100-240v 50-60hz

Output voltage : 14V

Output current : 10-2000mA

DC connector : Male OD5.5mm*ID2.1mm*L10mm

EMC&LVD : YES

Contact Now

adaptateur secteur 14v 1000ma 1500ma 1900ma 1.9a ac dc 14v 1.07a interchangeable plug adapter

Product Description

INPUT CHARACTERISTICS:

Rated Voltage:100~240Vac,Rated Frequency: 50/60Hz.

Variation Range:90-264Vac,Variation Frequency:47-63Hz

No-load power consumption

0.21W Max.At115Vac/230Vac input.

OUTPUT CHARACTERISTICS:

Voltage:14vdc Rated. Load: 10~2000mA Output power:3.3~24Watt

Efficiency:≥88%

Wall mount type Series	Max. Power	Output Current
YHY-WL050S	5W	10~1000mA
YHY-WL012S	12W	10~2000mA
YHY-WL036S	36W	10~3000mA
YHY-WL060S	60W	10~5000mA

Desktop type Series	Max. Power	Output Current
YHY-DS012S	12W	0.1~1A
YHY-DS036S	36W	0.1~3A
YHY-DS072S	60W	0.1~6A
YHY-DS100S	100W	0.1~8.3A
YHY-DS120S	120W	0.1~10A
YHY-DS150S	150W	0.1~12.5A

PROTECTION FUNCTION:

Short circuit Protection

Over current Protection

Over Voltage Protection

14v 1.07a Interchangeable Plug Adapter With Protection Functions

SAFETY AND EMI REQUIREMENT:

HI-POT TEST

HI-POT---A IEC 320 3pin primary to secondary ( FG ) 1700Vac 5mA 1min

HI-POT---B IEC 320 2pin primary to secondary 3000Vac 5mA 1min

EMI STANDARD

FCC part 15 : Class B for radiated and conducted emissions

EN55022:2010 , Class B for radiated and conducted emissions

Safety Certification Standards

Trademark	Standard
UL/CUL	UL 60950
FCC	47CFR FCC Part15
CE	EMC&LVD
GS	EN60950
PSE	EN60950
SAA	AS/NZS 60950.1:2011 IncA1
C-Tick	EN60950
KC/KCC	EN60950
OTHERS	ROHS / DOE VI / Class2

DC plug

Below standard dc tip size for your reference,customized dc jack also can be acceptable,pls send detail drawing to: may at yhypower.com

14v 1.07a Interchangeable Plug Adapter With Protection Functions

Company Information

Welcom to Shenzhen YingHuiYuan electronics co.,ltd

1.Manufacturers of power supply,specialized in ac/dc power adapter

2.Located in ShenZhen,mainland China,300-600 employees.

3.OEM/ODM acceptable.

4.35% export to Western Europe,35% to North America and 25% to domestic market.

14v 1.07a Interchangeable Plug Adapter With Protection Functions

Packing

1.Express Freight for small quantity via DHL UPS or TNT
2.Ship via air
3.Ship via sea
ITEMS	QTY(EA)	Lead Time(workdays
samples	<10	3
mass orders	500~1K	6~8
	1K~5K	10~12
	5K~10K	18~20
	10K~30K	22~25
REMARK:data of lead time for reference,pls contact sales if need details.

14v 1.07a Interchangeable Plug Adapter With Protection Functions
